Installation and Substructure

01.

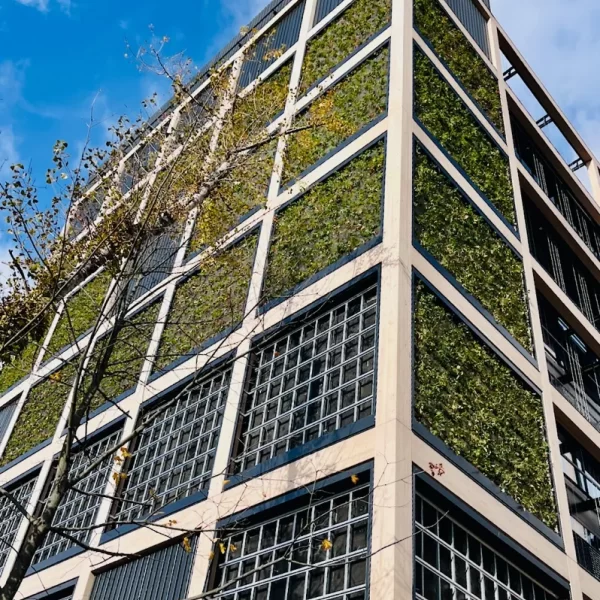

Durable Green Wall Installation

The installation system for the green wall on the facade relies on modern technologies and simplicity of assembly, ensuring durability and functionality of each component. The structure consists of load-bearing brackets, wind brackets, vertical, and horizontal profiles, installed using chemical or mechanical anchors. The load-bearing bracket carries the main weight of the system, while the wind brackets provide stabilization. The green wall modules are hung on the “Z” profiles, ensuring stability and security.
Eco-Facade_ENG

02.

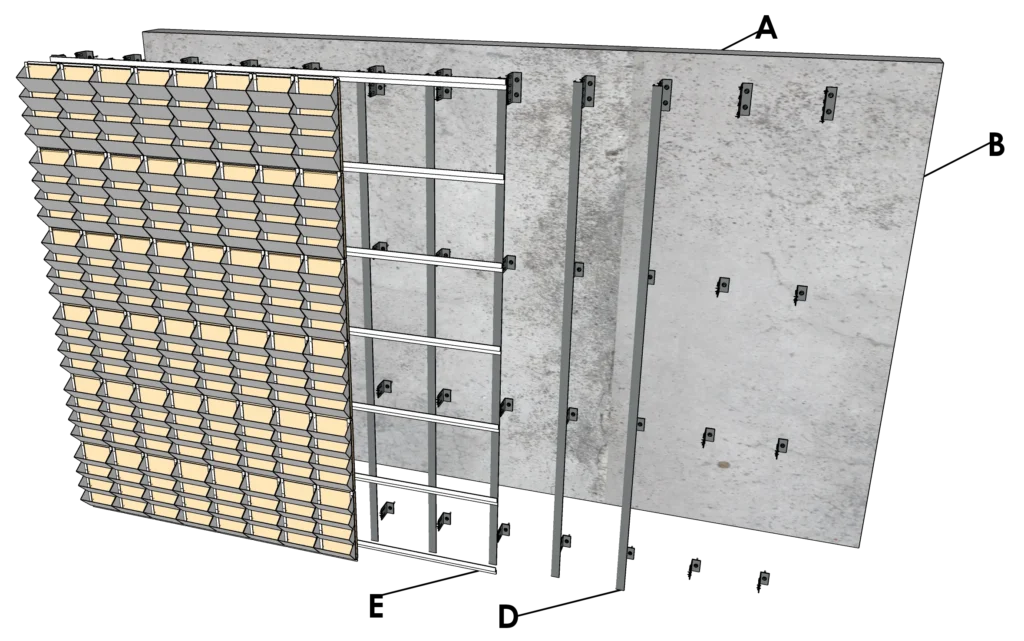

Innovative Modular Installation

The construction and installation of the modular
system is a process that combines innovative
technologies with installation simplicity, ensuring
durability and functionality of every component. For
the installation of the façade vertical garden system,
we utilize existing ventilated facade construction
technologies.

ściana moduł z warstwami i wkętemsk aksonom

03.

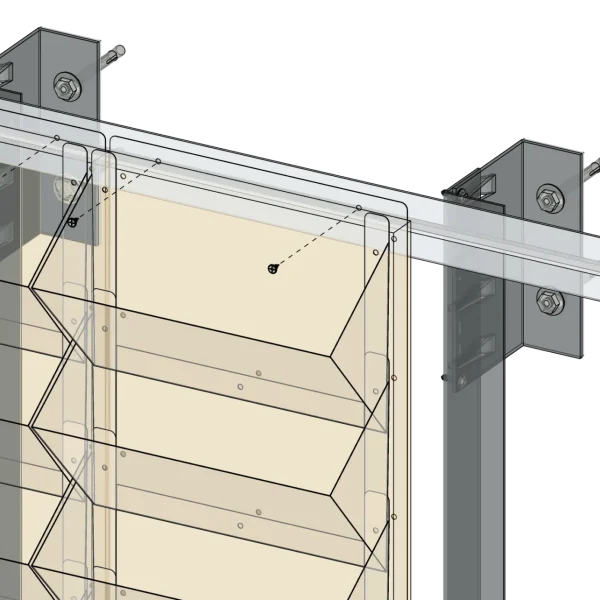

Modular Construction System

The structure consists of load-bearing brackets, wind brackets, vertical profiles, and horizontal profiles. For attaching the brackets, we use chemical anchors or mechanical anchors depending on the type of substrate. The load-bearing bracket is designed to carry most of the load and is mounted at the very top, followed by the wind brackets mounted below. Vertical “L”-type profiles are attached to the brackets using selfdrilling screws. Horizontal “Z”-type profiles are then mounted to the vertical profiles The modular system is hung on the “Z”-type profiles and secured using selfdrilling screws.

03.

Modular Construction System

The structure consists of load-bearing brackets, wind brackets, vertical profiles, and horizontal profiles. For attaching the brackets, we use chemical anchors or mechanical anchors depending on the type of substrate. The load-bearing bracket is designed to carry most of the load and is mounted at the very top, followed by the wind brackets mounted below. Vertical “L”-type profiles are attached to the brackets using selfdrilling screws. Horizontal “Z”-type profiles are then mounted to the vertical profiles The modular system is hung on the “Z”-type profiles and secured using selfdrilling screws.

A: LOAD BEARING BRACKET
B: WIND BRACKET
C: “Z” TYPE PROFILE
D: “L” TYPE PROFILE
